Vedder Bridge

Posted on by Jessica Christensen

Client: Emil Anderson Construction
Location: Chilliwack BC
Completion Date: April 2017

Project Highlights:

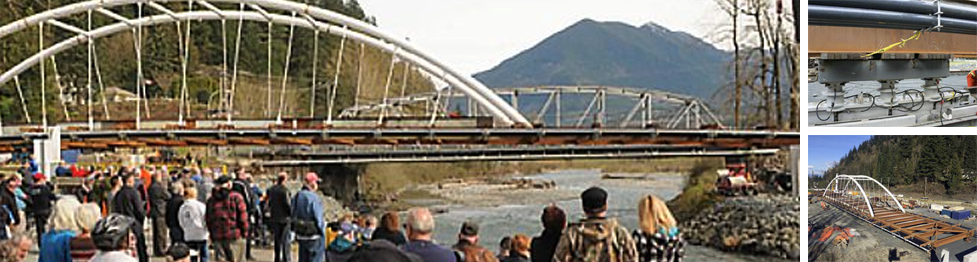

A King Post Support System was used in conjunction with hydraulic jacks and skid shoes to propel the bridge across the River without any in-stream temporary supports. Although the bridge is 80 meters in length, the critical part of the launch was the first 60 meters when the bridge was cantilevered over the river, until the south end of the bridge touched down on the pier. It is anticipated that the first 60 meters of travel will be completed in one day. (April 11th) The remaining 20 meters of travel requires a series of detailed and coordinated steps and is anticipated to take two to three days to complete.

Services:

  • This is the first arch bridge in the world (that the Design-Build Team is aware of) that has been launched with a king post support system.
  • The total weight of the bridge, suspended pipes, launch girder, and counter weight is approximately 420 tonne (926,000 lbs)
  • The total weight of the counter weight is approximately 148 tonne (326,300 lbs)
  • The bridge was fabricated in Delta, BC, at Supreme Steel’s Canron facility.
  • The launch cable is a spiral strand cable with a minimum breaking strength of 4,070 kN (415 tonne –force, 915 kip).
  • One launch cable weighs approximately 2,000 kg (4,400 lbs)
  • The precast concrete counterweight panels, will form part of the bridge deck after the bridge is in place.
  • The bridge system has been designed to minimize the amount of work needed to be completed over water. Completing work over land is far safer, more productive and cost effective.
  • The suspended utilities (sanitary, water, gas, BC Hydro, and Telus) have all been preinstalled under the bridge.

Download the project sheet.
